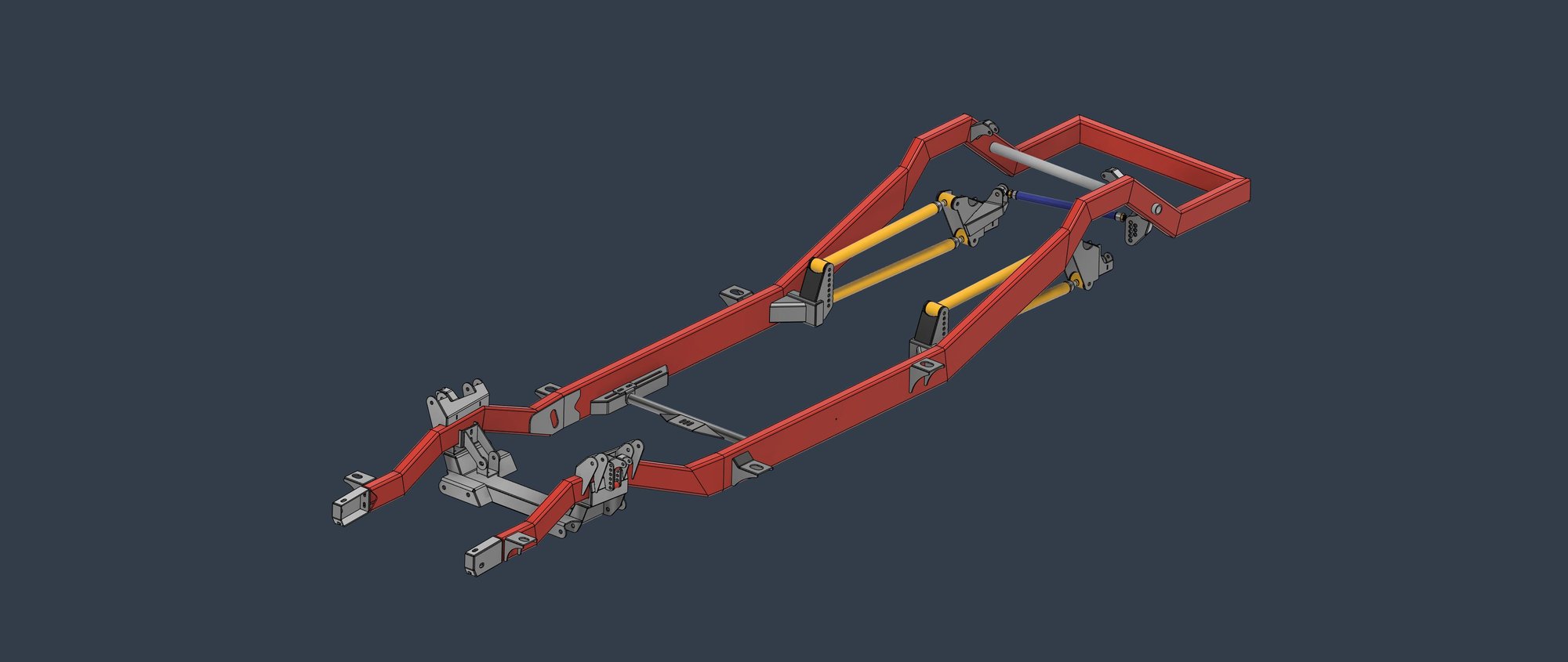

67-72 C10 Coilover Complete Chassis 3D Model
OFF_WHITE Suspension is the first to offer a fully developed, do-it-yourself C10 chassis file system. Built for both hobbyists and professionals, this package delivers the precise files and drawings you need to fabricate a high-performance chassis—start to finish.
INCLUDED FILES
- 3D CAD Model (.STEP)
- Full PDF Blueprint Set with Cut-list
- DXF File Set with Integrated Bend Reliefs
- Flat Pattern Drawings with Bend Tables

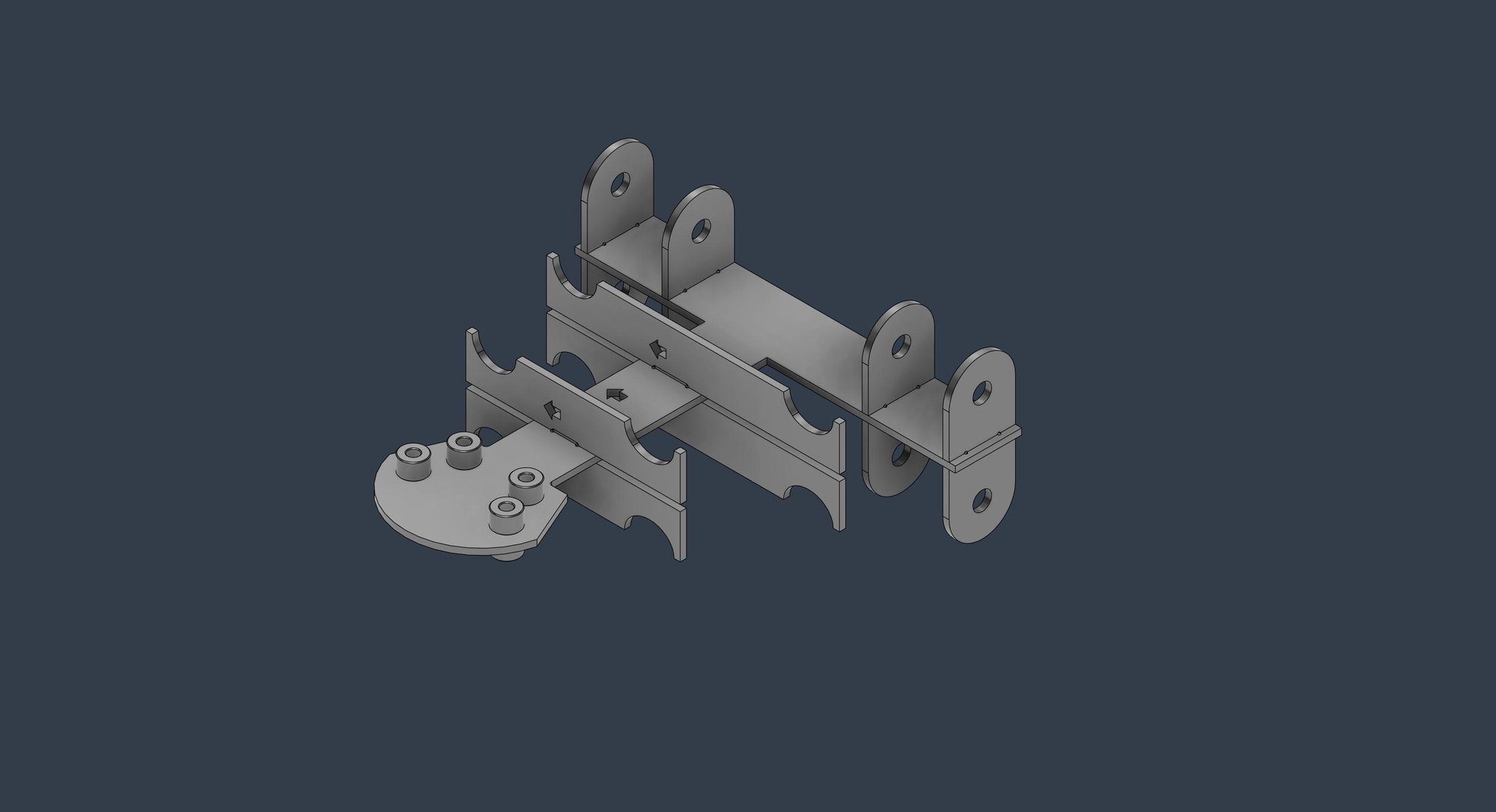

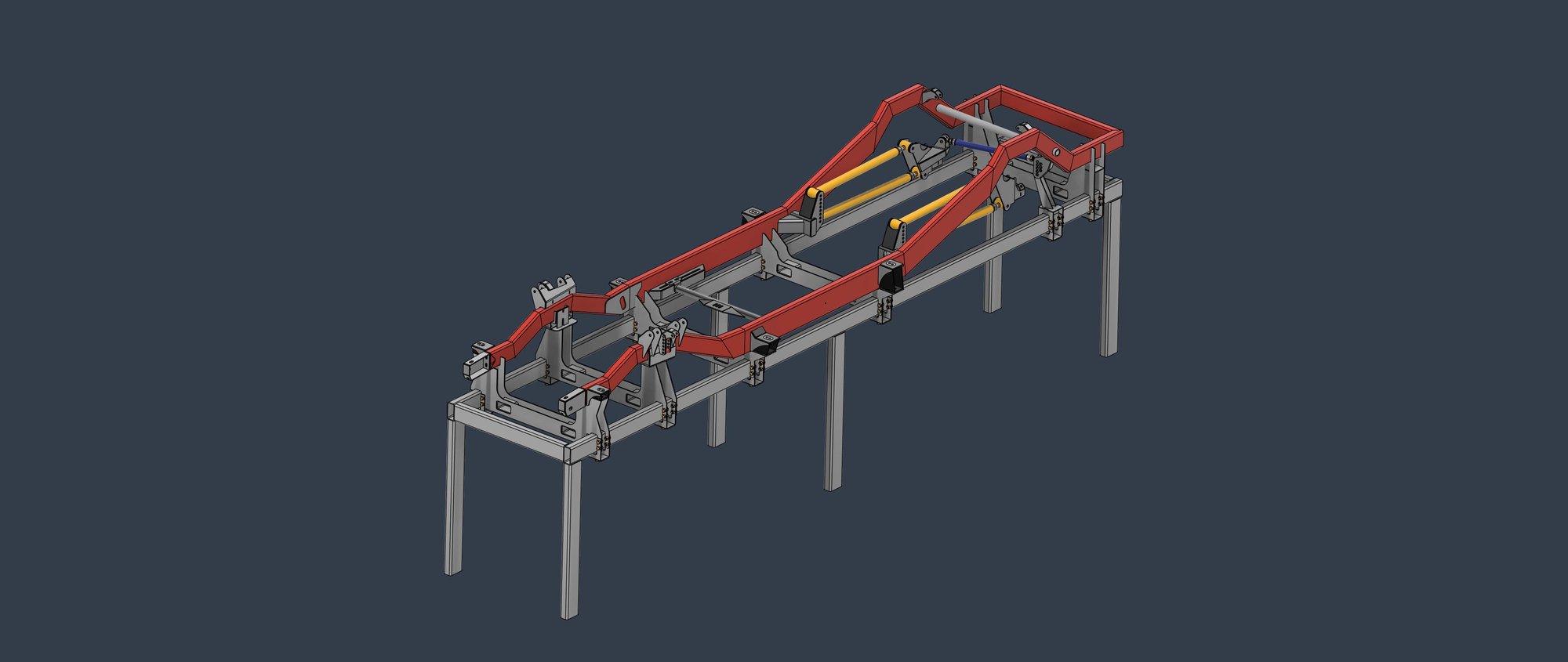

- Fixture Assembly Drawings for Critical Components
BUILDABLE COMPONENTS
- Main Crossmember Assembly
- Upper Control Arm Mounts with Adjustable Coilover Positions
- LS & SBC Engine Mounts

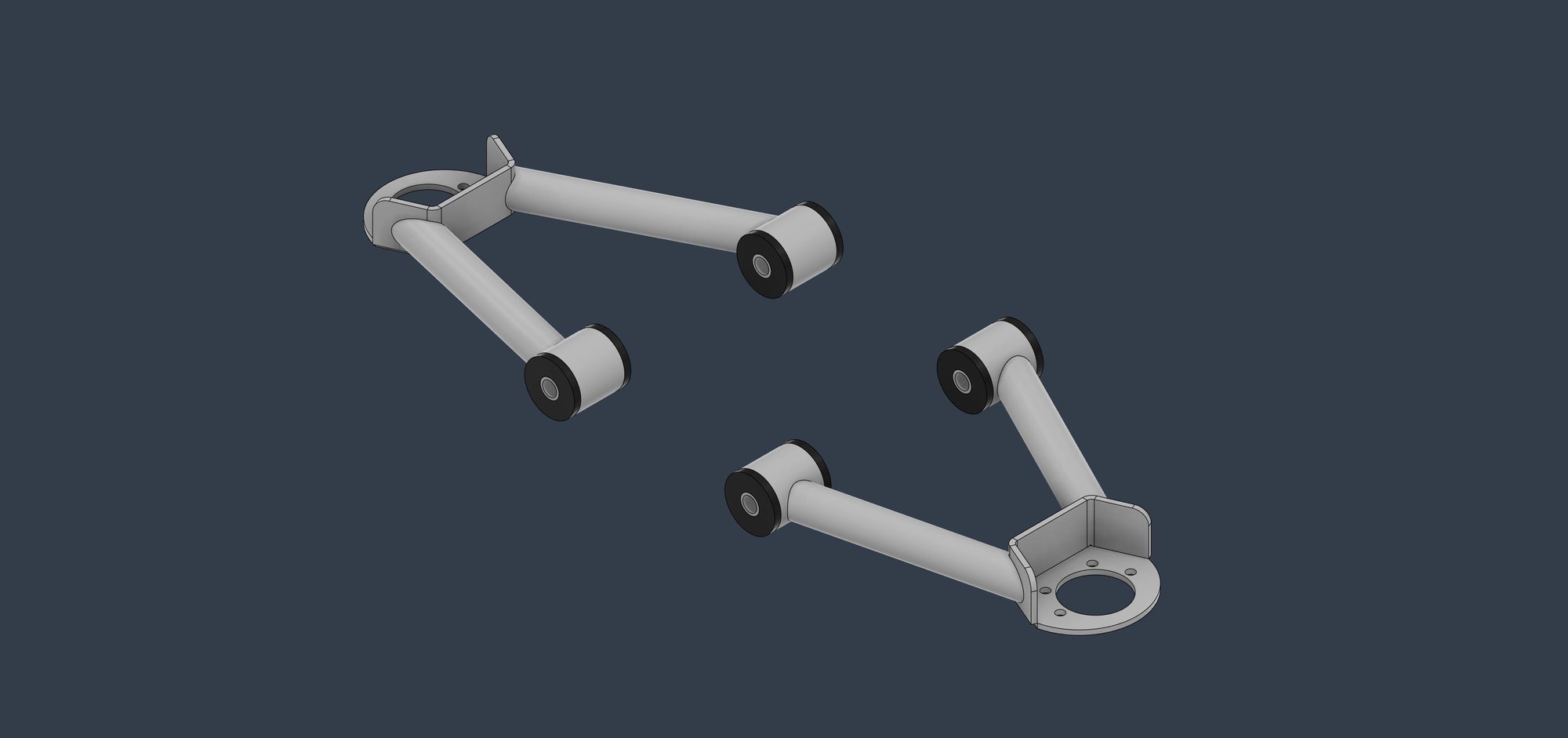

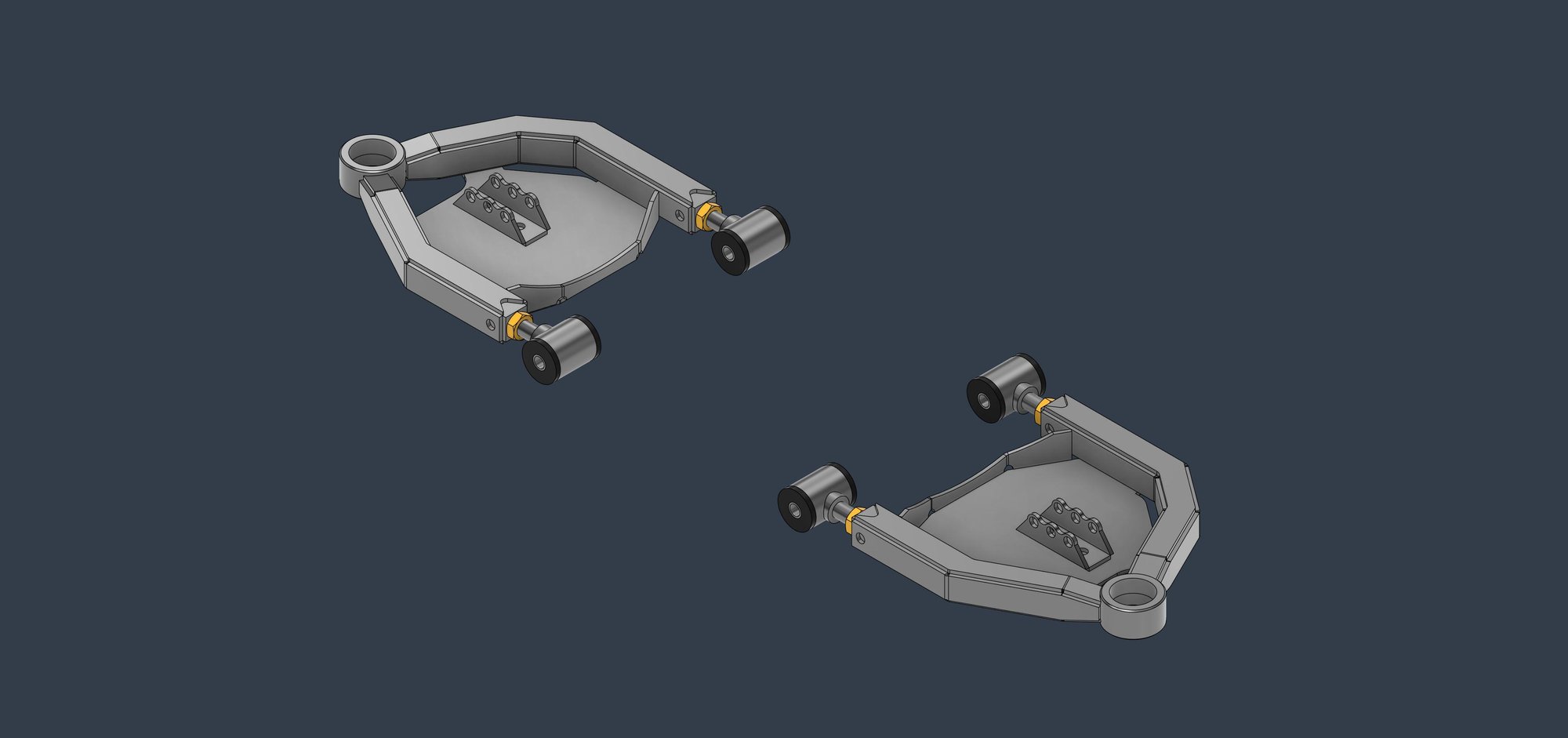

- Upper and Lower Control Arms (Tube & Plate Style)
- 2x6" & 2x4" .188 Wall Box Frame Rails
- Rear Notch Assembly with Lowered Profile
- Adjustable Front and Rear Coilover Mounting Brackets
- Integrated Bed Mounting Points (Front and Rear)
- Adjustable Transmission Crossmember
- Rear Bridge Cross Brace (Sway Bar Outer Tube Integration)
- Mustang II Rack & Pinion Steering Configuration
- Tie Rod Adapters with Misalignment Spacers
- Parallel 4-Link Rear Suspension with Adjustable Trac-Bar
- Adjustable Front Frame Horns and Bumper Mounts
RIDE HEIGHT OPTIONS (Based on 29" OD Tire)
- 2.5" Drop Spindle: 4–6" Ride Height
- Stock Spindle: 6–8" Ride Height
APPLICATION
- Designed for Fabricators, Restorers, and Builders
- Compatible with Chevy C10 Trucks, Model Years 1967–1972
- Optimized for CNC Plasma/Laser Cutting and Press Brake Forming
LICENSE & USAGE POLICY
By purchasing this digital file package, you are granted a non-transferable, single-user license. You agree not to distribute, share, reproduce, sublicense, or resell any portion of these files—digitally or physically. Redistribution through any medium, including file-sharing websites, peer-to-peer platforms, or third-party transfers, is strictly prohibited.
All content remains the intellectual property of OFF_WHITE Suspension. Unauthorized use will be considered a violation of this agreement and may result in legal action.
For commercial or multi-user licensing, please use contact form.
DIGITAL FILE NOTICE
This item is a digital asset only. Upon purchase, you will receive fabrication-ready files—including .DXF cut files and a 3D CAD model (if applicable)—intended for use with laser, plasma, or water-jet cutting systems.
No physical products are included.
