63-66 C10 Complete Chassis Airbag 3D Model

Build your own C10 frame—right from your garage.
This all-in-one digital chassis package gives you the tools to fabricate a fully functional, performance-ready Chevy C10 frame using your own equipment, or with help from your preferred fab shop.

INCLUDED FILES
- 3D CAD Model (.STEP format)
- Complete PDF Blueprint Set with Cutlist
- CNC-Ready .DXF Files with Bend Reliefs

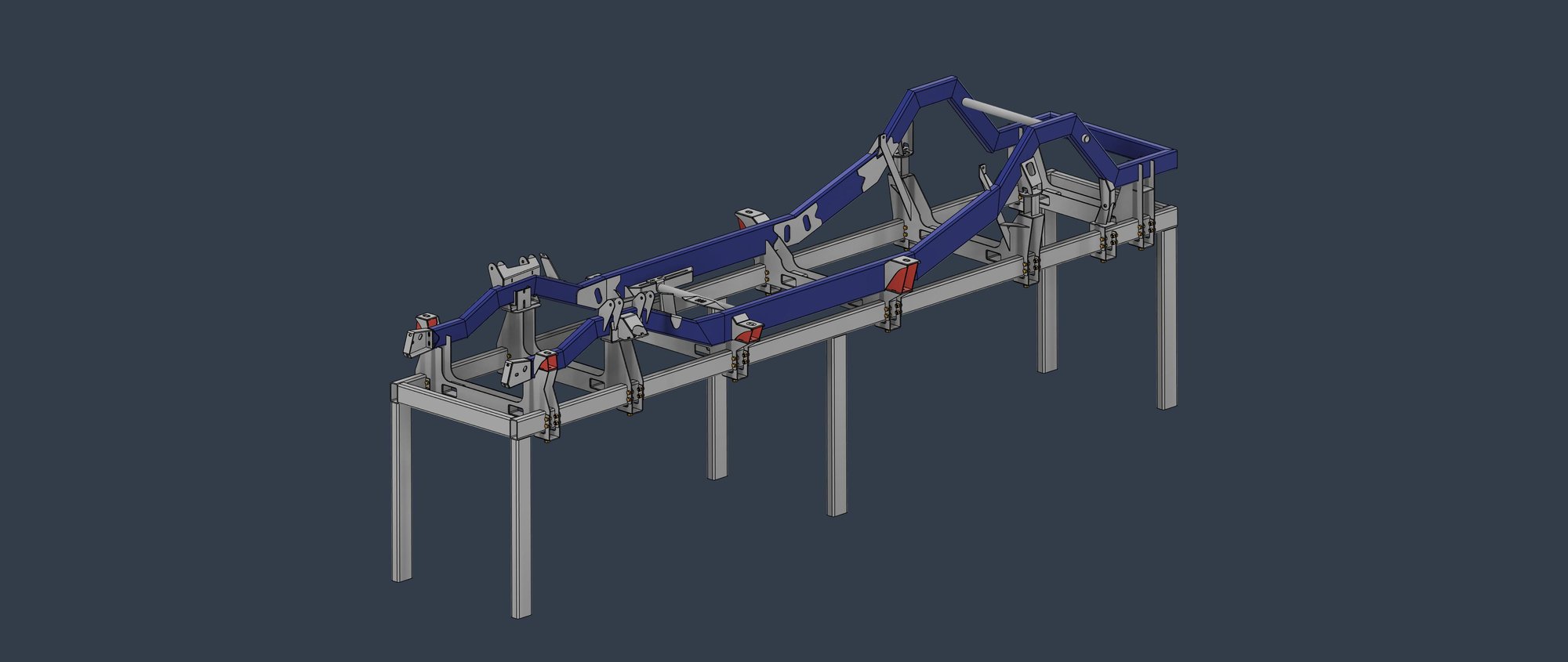

- Fixture Assembly Drawings for Critical Components

BUILDABLE COMPONENTS
- Main Crossmember Assembly
- LS & SBC Engine Mount Options
- Upper Control Arm / Airbag Mounts

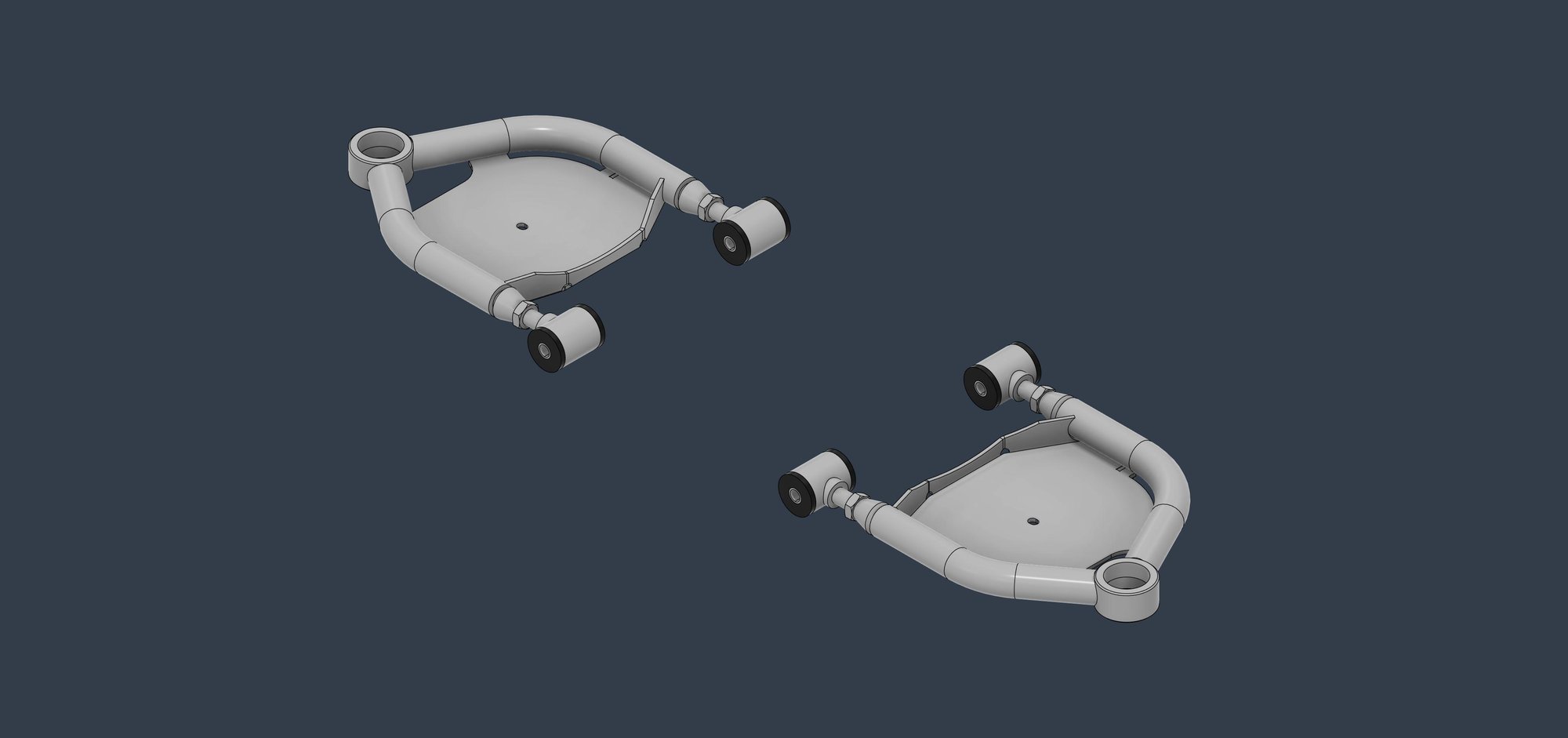

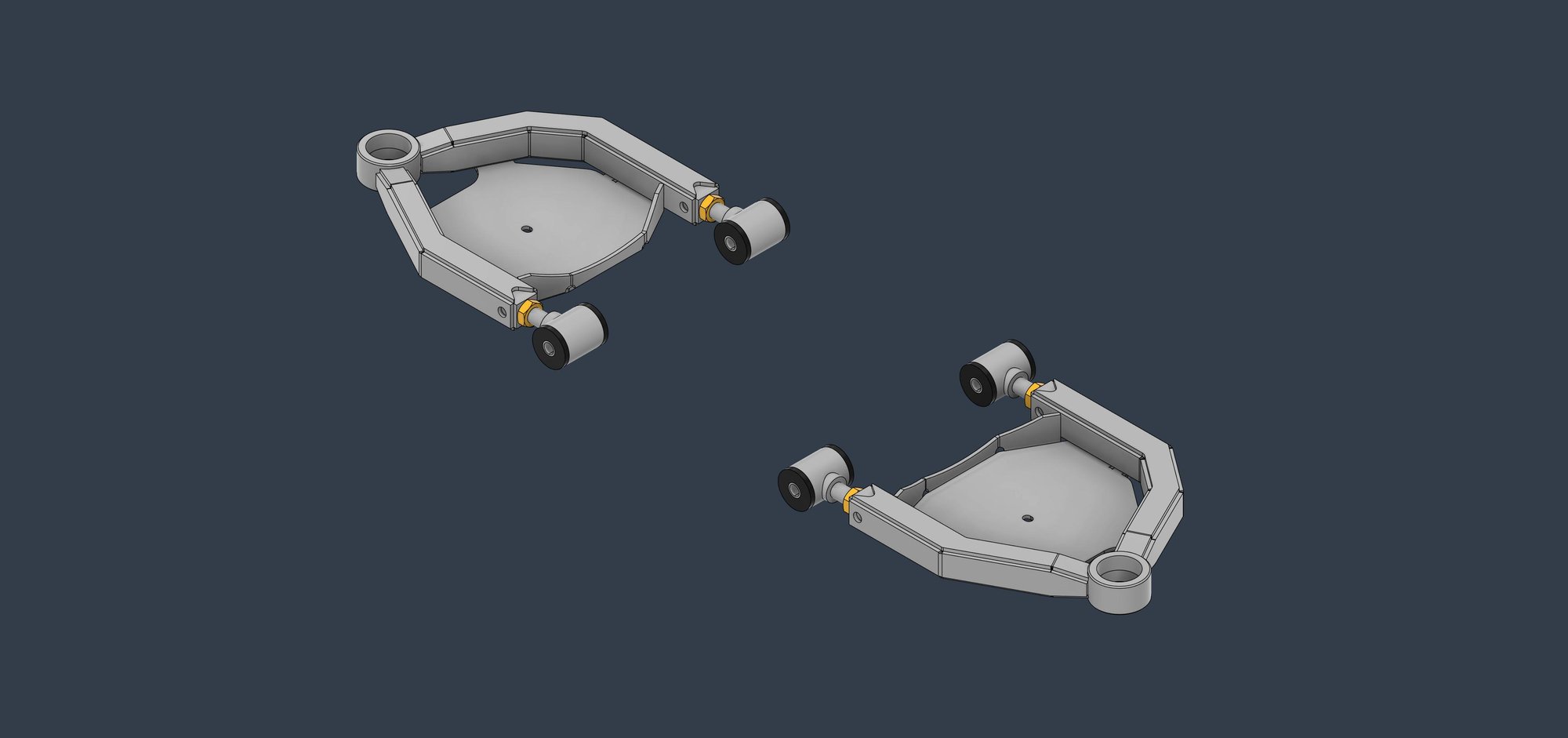

- Upper & Lower Control Arms – Tube and Plate Versions
- 2x4" and 2x6" .188 Wall Box Frame Rails
- Adjustable Transmission Crossmember
- Mustang II Rack & Pinion-Ready Geometry
- Rear Bridge / Sway Bar Combo Tube
- Front Frame Horns, Bumper Mounts, Tie Rod Adapters, and More

BUILT-IN PERFORMANCE
- Suspension Designed to Lay Frame on 29" OD Tires
- 10.8" of Rear Suspension Travel
- Engineered for Fabricators of All Skill Levels

APPLICATION
- Designed for Fabricators, Restorers, and Builders
- Designed to Fit 1963–1966 Chevy C10 Trucks
- Optimized for CNC Plasma/Laser Cutting and Press Brake Forming

LICENSE & USAGE POLICY
By purchasing this digital file package, you are granted a non-transferable, single-user license. You agree not to distribute, share, reproduce, sublicense, or resell any portion of these files—digitally or physically. Redistribution through any medium, including file-sharing websites, peer-to-peer platforms, or third-party transfers, is strictly prohibited.

All content remains the intellectual property of OFF_WHITE Suspension. Unauthorized use will be considered a violation of this agreement and may result in legal action.

For commercial or multi-user licensing, please use contact form.

DIGITAL FILE NOTICE
This item is a digital asset only. Upon purchase, you will receive fabrication-ready files—including .DXF cut files and a 3D CAD model (if applicable)—intended for use with laser, plasma, or water-jet cutting systems.
No physical products are included.
